Extruder and Extrusion Lines (Smart Sheets®)

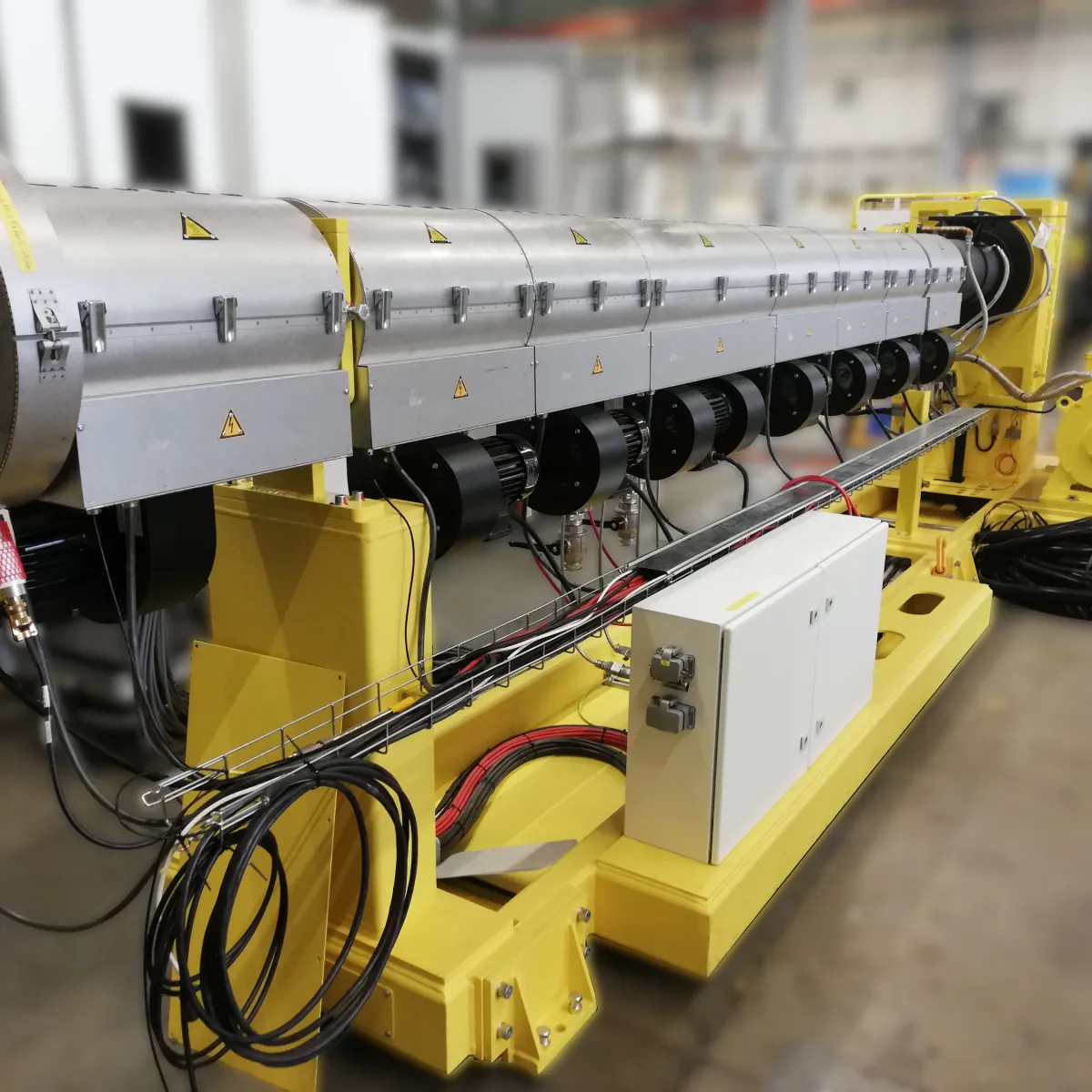

Single Screw Extruders screw diameter 25 - 250 mm, barrel length 24 – 44 D High-Speed Extruder (space- and energy saving design) available for the extruder sizes KHS60-33D, KHS70-39 and KHS90-39D for a capacity up to 2.800 kg/h PS Flat Film Extrusion Lines (mono / co-extrusion) up to 11-layer Applications e.g. food packaging/barrier foils etc. Coating and Laminating Extrusion Lines Sheet Extrusion Lines (mono / co-extrusion) up to 9-layer, up to 50 mm thickness, up to 4.000 mm width Applications e.g. smooth / embossed sheets for automotive, optical, sanitary, advertising and chemical application Geomembrane Extrusion Lines (mono / co-extrusion) up to 8 m net width, thickness range from 0.5 mm to 3 mm with a throughput from 1 t up to 3.5 t Applications e.g. as isolation or sealing of areas and surfaces at the construction of landfills etc. Extrusion Lines for special films direct vacuum forming films (dimpled sheet) Applications e.g. foundation wall protection, planted green flat roof sealing etc.
