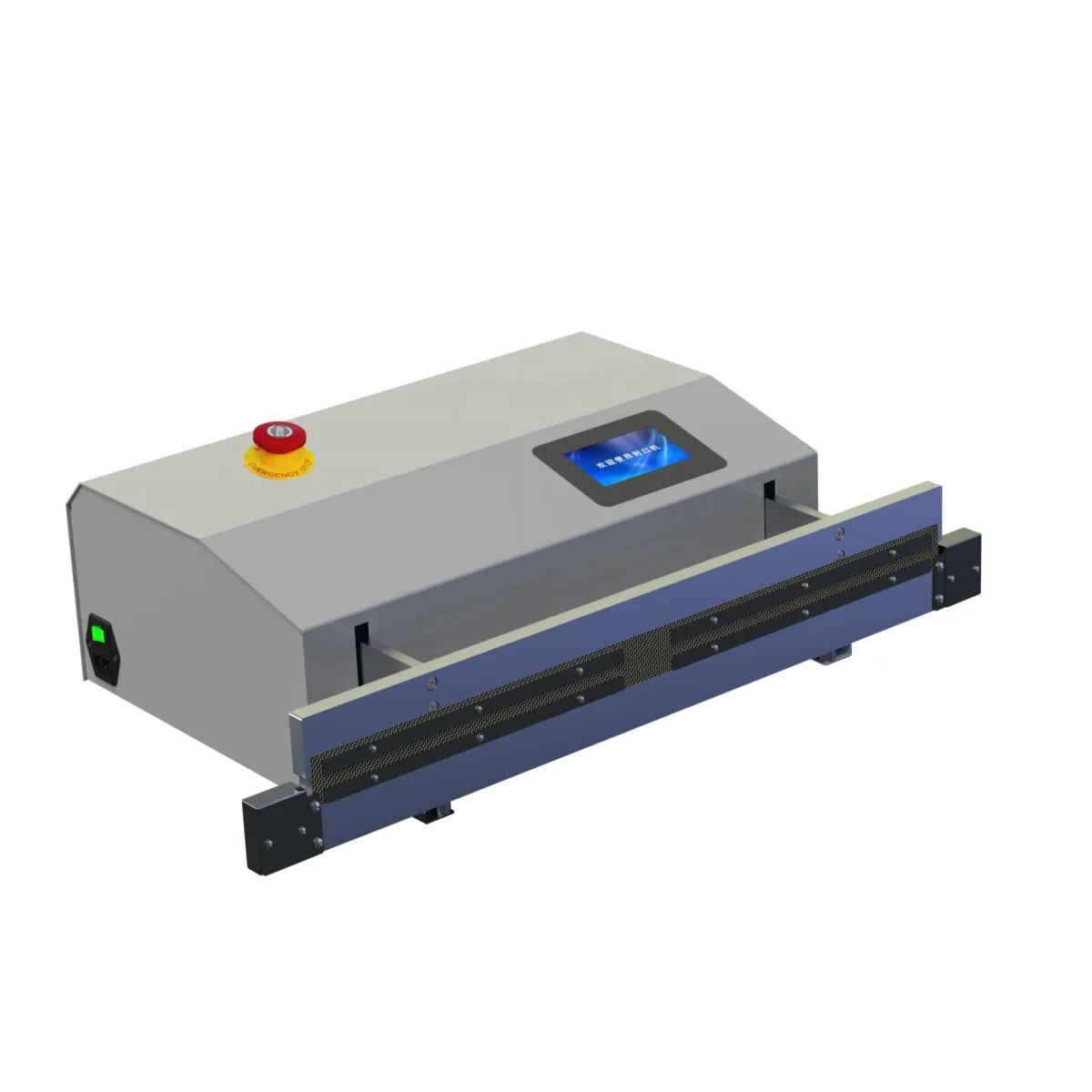

MY300-E Series Pulse Type Electric Press Sealing Machine
★Main functions: MY300-E series pulse type electric press sealing machine is a special equipment used for sealing medicinal Tyvek breathing bags, top bags, medicinal low density polyethylene PE bags, aluminum foil bags, etc. It can seal packaging bags below 1200mm, mainly suitable for pharmaceutical, bio-pharmaceutical, medical consumables manufacturing enterprises, etc.
★Technical parameters:
1.4.3-inch color LCD touch screen, English operation interface, automatic counting function;
2.Drive Mode: electric (no air source required), pulse heating, fast heating, fast cooling;
3.The sealing temperature is 80-200℃ adjustable, the cooling temperature is 60-120℃ adjustable, the sealing time is 0.2-6S adjustable, and the cooling time is 1-100S adjustable;
4.Sealing line width is 3mm/5mm/8mm/10mm optional (3mm recommended);
5.Maximum sealing length is 500-1200mm optional;
6.Power supply: 110-220V (50/60Hz) ,maximum power 500W; Plug: optional for European standard, American standard, British standard and Chinese standard;
7.Adopt single chip control, equipped with emergency stop button function;
8.Controlled by foot switch, when step on the foot switch, the pressing rod will close automatically, and after reaching the setting parameters, the pressing rod will open automatically;
9.In case of unexpected power failure, the system can save the sealed data, and the equipment can automatically reset after the power is recovered;
10.The screen also has a button to start the sealing work;
11.Housing material: 304 stainless steel
12.Optional bracket for adjusting the sealing distance, adjustable from 15-60mm;
13.Various types of cutting machines can be selected for cutting sterilization bags;
