SISTEMAS DE PRODUCCIÓN DE OXÍGENO & PLANTAS PSA (OXYGOLD) - MEDICAL OXYGEN GENERATOR SYSTEMS
Equipment
Information
PRODUCTION
• Produce your oxygen via OXYGOLD oxygen generating systems.
• No need to order in and store liquid oxygen tanks , gas cylinders
• Oxygold system uses air together with integrated air compressor, refrigerated dryer and filtration system and separates oxygen from other gases via nano-technology
• Separation is carried out with a synthetic zeolite material which does not
need to be replaced
• Process is fully automated
• Transmission pressure is adjusted according to the customer’s needs from
0 bar (g) to 6 bar (g).
• 90% - 98% at oxygen production purity
• For medical and commercial facilities
CONTROL
• Oxygold oxygen generating systems comply with 93/42/EEC Medical Device
Directives
• Audible and visual alarms in case medical oxygen is below 90%.
• Automatic shut down system
• 7” LCD color touch screen control panel
STORAGE
• Integrated oxygen storage tanks
• System automatically stores pure oxygen to be ready for use

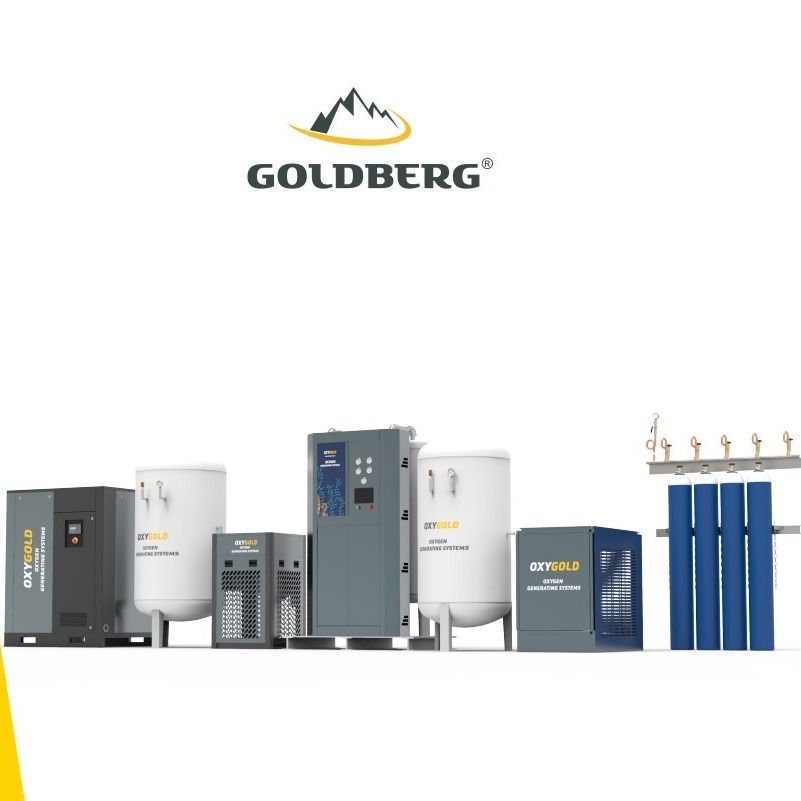

SYSTEM INFORMATION
1- Compressor
2- Pneumatic Liquid waste (test controlled)
3- Air dryer ( Automatic water and oil drainage unit)
4- Oxygen generator
5- Air and oxygen tanks
FIELDS OF USAGE
• HEALTHCARE FACILITIES:
Hospitals, Intensive Care Units, Clinics,
Ambulances, Oxygen Therapy Centers,
Mobile Hospitals, Veterinary Hospitals
• WELLNESS CENTERS:
SPA and Beauty Centers, Ozone Treatment
Centers
• INDUSTRIAL FACILITIES:
Factories like glass, painting, textile etc.
• CLOSED AREAS:
Hotels, Sport Halls, Shopping Malls,
Cinema Centers
SPECIFICATIONS
• Fully Automated
• 24/7 – 365 days operation
• Compliance with 93/42/EEC Medical Device Directives
• 90% - 98% Purity
• 0,6 -150 m³/h Oxygen Output
• 220 V 50 Hz Oxygen Generator Power Supply – 380 V 50 Hz Compressor
• Operating Temperature is 0 to 50ºC
• 0.15 – 35 m³/min Air Inlet (7 bar)
• No safety risks of handling of high pressure cylinders
• Digital control panel and graphic display
• Oxygen producing capacity between 10 L/min to 2500 L/min
• Return on Investment period 12-24 months
