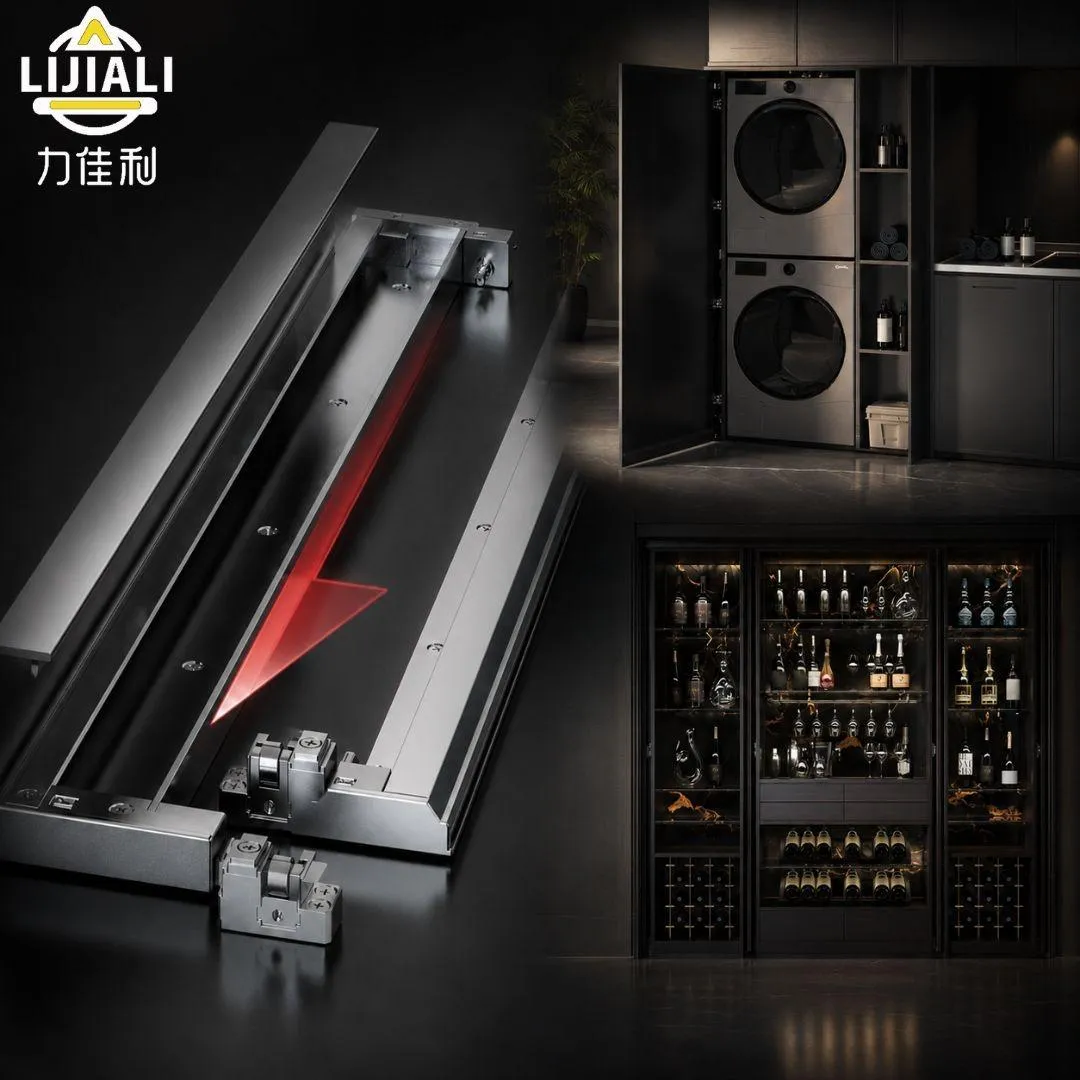

Hardware Pocket Door System: A Space Optimization Solution
Sistemas para porta de correr







Information
Product Specifications:
Model No.: P106
Product Name: Retractable Pocket Door System
Max Door Panel Height: 1900-2700mm
Max Door Panel Width: 440-750mm
Door Panel Thickness: 18-25mm
Single-side Load Capacity: 35 kg
Material: Zinc Alloy + ABS Plastic
Product Features: Space-saving design, concealed appearance, smooth sliding mechanism, soft-close compatibility,multiple scenarios
Product Application: kitchen appliance cabinets, walk-in closets, TV cabinets, laundry areas, and bathroom partitions
1. Core Components
① Drawer opening device P79: stabilizes the door panel when retracted into the wall.
② Aluminum alloy load-bearing frame: ensures strength and durability.
③ Precision zinc alloy hinges: paired with gold electroplating for anti-rust protection.
④ Freely cuttable tracks: allow flexible adaptation to single, double, or multiple door designs.
2. Design Positioning & Aesthetics
➊ Focuses on space maximization and minimalist style.
➋ Door panels fully retract into the wall, leaving spaces clean and uncluttered.
➌ Versatile applications: study, balcony, wine cabinet, display unit.
➍ Built-in cup-head damping system and silent track deliver smooth, quiet movement.
➎ Operating noise ≤ 28dB, reliable even in -20℃ to 60℃ environments.
3. Installation & Maintenance
⓵ Vertical leveling and horizontal adjustment (±3mm).
⓶ Door angle adjustment (90° ±5°).
⓷ Quick alignment improves efficiency and reduces maintenance time.
4. Performance & Adaptability
The system offers reliable performance with each side door panel supporting up to 35kg. It is suitable for door heights up to 2700mm, widths between 440–750mm, and panel thicknesses of 18–25mm, fully meeting the diverse needs of modern living spaces.
Blends seamlessly into the environment.Creates a freer, quieter, and more comfortable living experience.
