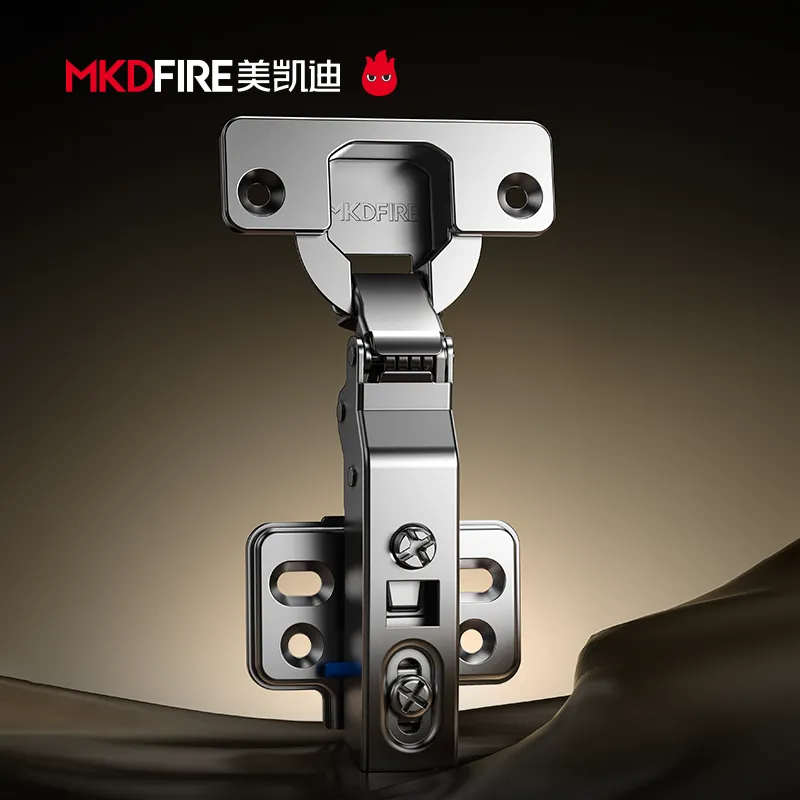

Controllable Switch Damper Slide on Hinge

Product Specifications: Model No.: M10 Diameter Of Hinge Cup: Ф35mm Door(K)dimension: 3-7mm Optional Door Thickness: 16-26mm Small Angle: 5° Wall Thickness: 1.2mm Damping Characteristics: POM hydraulic Opening Angle: 100° Depth Of Hinge Cup: 11.5mm Material: Cold rolled steel/ SUS 304 stainless steel Surface Treatment: Nickel plating /Black nickle Lifecycle Test: 50,000Revolutionary Switchable Damping Technology The standout feature of the M10 is its Switchable Damping Hinge system. The M10 allows users to freely control the hydraulic function. Dynamic Control: With a built-in switch, you can choose between Off, 50%, or 100% buffering force. Precision Performance: This ensures that whether the door is heavy or ultra-light, it will neither slam against the frame nor get stuck halfway. It is the perfect hydraulic hinge for those who demand precise control over closing speed. One Model Fits All: Optimize Your Inventory For those in the wholesale cabinet hardware business, inventory management is a significant challenge. The M10 is designed with high adaptability: Universal Fit: Features a standard 35mm cup, compatible with door thicknesses ranging from 16mm to 26mm. Advanced 4-Stage Force Mechanism The M10 sets a new benchmark for cabinet hinges by integrating a sophisticated 4-stage force structure. In full damping mode, the hinge includes: 1. Anti-rebound Zone：Prevents door panel rebound. 2. Any-stop Zone (45° to 80°): Keeps doors open exactly where you need them. 3. Buffering Zone Provides a soft closing mechanism. 4. Small-angle Soft Close: Provides multi-stage cushioning to effectively prevent finger pinching, a critical safety feature for residential and commercial hinges. For more information about this product, please click here: https://www.lijialihardware.com/slide-on-soft-close-hinges/68773646.html
